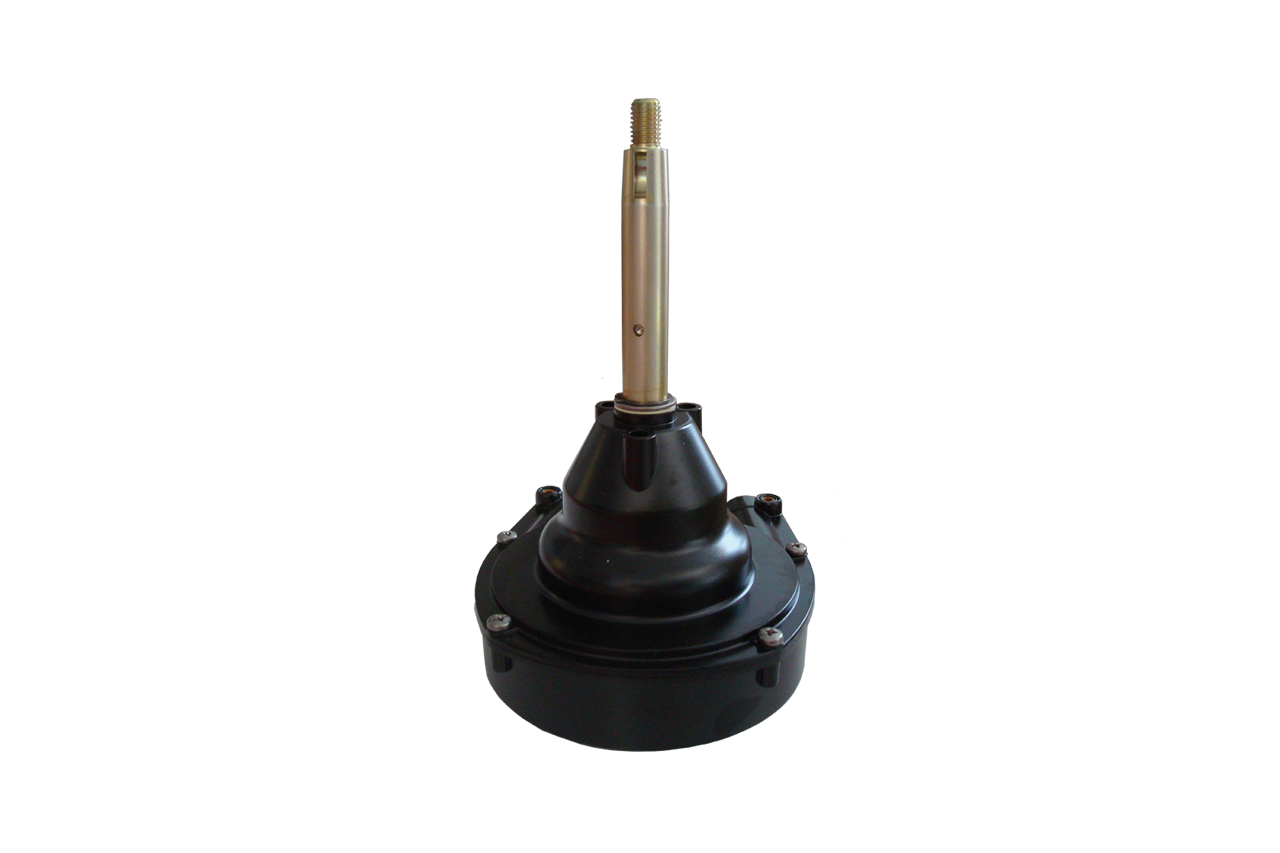

T91 Steering System

T91 Steering System

Planetary Gear Design • Specifically designed for high performance and high efficiency applications • M90 Mach cable (patented): performance, flexibility and durability increased by top ...

Planetary Gear Design

• Specifically designed for high performance and high efficiency applications
M90 Mach cable (patented): performance, flexibility and durability increased by top quality materials and construction.
• Fast connect, simple installation, patented end fitting.
• Stainless steel cable output end featuring patented gasket, engine side
• Corrosion resistant materials
• Standard 3/4” tapered shaft
• Minimal feedback
• T91 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph our hydraulic steering systems are recommended
• Optional steering wheel
Engine connection kits
• T91 is also available in package with FOURTECH-I
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards

Label Value
Installation 90° or 20°
M90 steering cable stroke 228 mm (9")
Lock-to-lock steering wheel turns approx. 4,2
Max. steering wheel diameter 406 mm (16")
Suggested steering cable bend radius 200 mm (7.87")
Min. steering cable bend radius 150 mm (5.9")

Model Part Number Description
T91 42647S Single cable steering helm
X34 36654B Black bezel, 90° mounting
X34W 40654C White bezel, 90° mounting
X91 42850N Chrome bezel, 90° mounting
X90 42646P Chrome bezel, 90° mounting with lock device
X35 36655C Black bezel, 20° mounting
