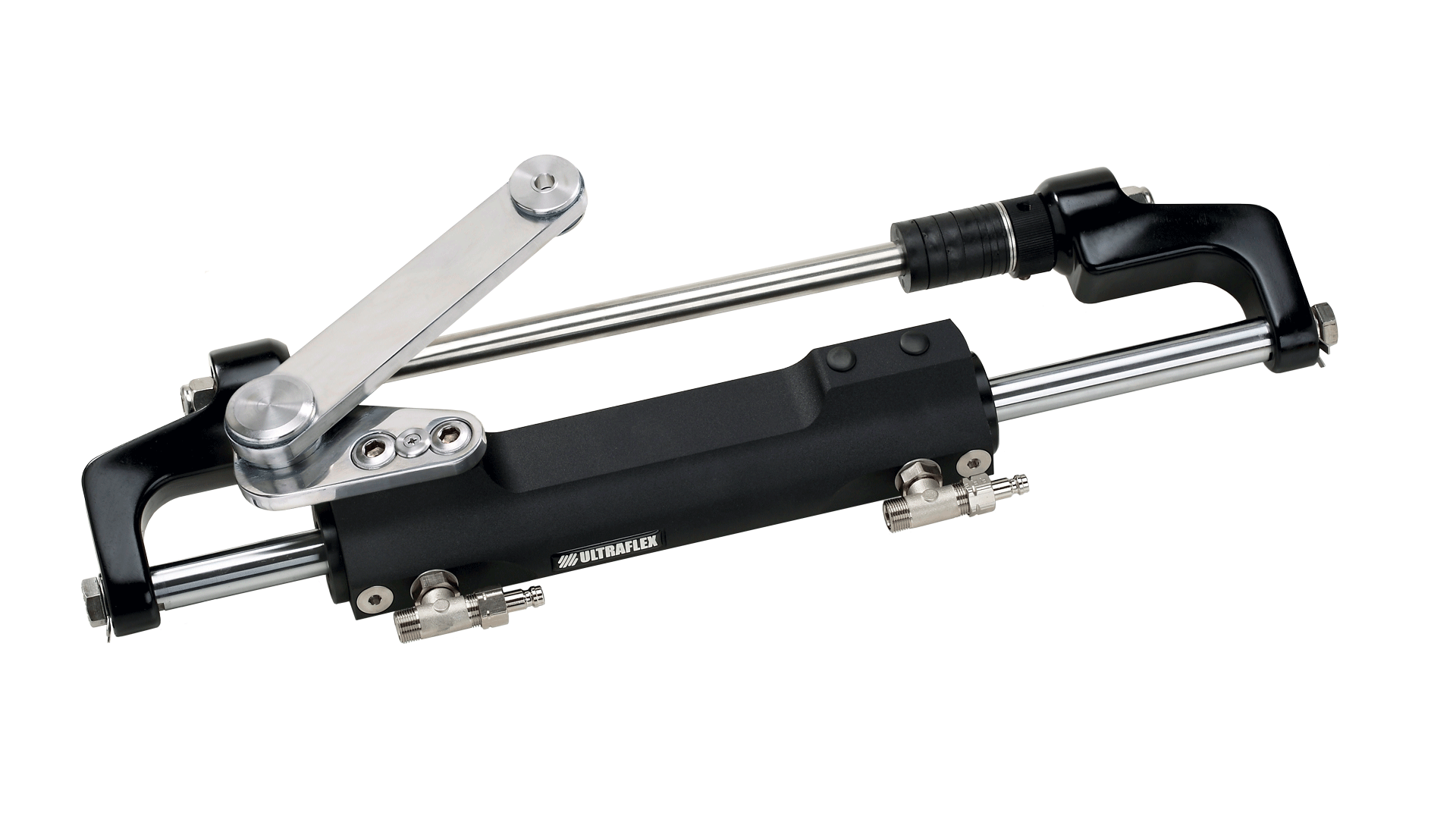

UC128-OBF Front Mount Cylinder

UC128-OBF Front Mount Cylinder

UC128-OBF – Balanced: the number of wheel turns lock-to-lock is equal port to starboard or vice-versa • Adjustable boss style fittings for easy installation • ...

UC128-OBF – Balanced: the number of wheel turns lock-to-lock is equal port to starboard or vice-versa

• Adjustable boss style fittings for easy installation
• High resistance stainless steel connection bolt (ULTRABOLT)
• Replaceable cylinder end caps

•  UC128-OBF cylinder is built with heavy duty stainless steel cylinder rod, seals and link assemblies, is simple to install and fits almost every 2 and 4 stroke outboard engine on the market.
• UC128-OBF cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and preassembled hoses (Kit OB and Kit OB/R5).
• In the applications with dual UC128-OBF cylinder it is necessary to order a standard UC128-OBF cylinder (link arm attached to the starboard side of the cylinder) and a port UC128P-OBF cylinder (link arm attached to the port side of the cylinder). See tie bars section to select the required model for dual engine/dual cylinder applications.

APPLICATIONS: UC128-OBF front mount cylinder is not recommended for use in installations where the boat speed exceeds 55 mph (48 knots) / (65 mph (56 knots) in dual engine, dual cylinder and counter rotating engines application). Not intended for use in racing applications.

Label Value
Volume 120 cc - 7.3 cu.in
Output force 450 kg (992 lbs)
Internal diameter 35 mm (1.37")
Stroke 185 mm (7.28")
Fittings for high pressure flex hose 3/8"
Bleed fittings DN5 quick connect

Model Part Number Description
UC128-OBF/1 43231N Front mount cylinder, starboard version
UC128-OBF/2 43232R Front mount cylinder, starboard version
UC128-OBF/3 43233T Front mount cylinder, starboard version
UC128P-OBF/1 43234V Front mount cylinder, port version
UC128P-OBF/2 43235X Front mount cylinder, port version
